Cross Cable EIA/TIA-568A :


  • LAN Cross cabling is used to connect the same types of devices together in the LAN network.

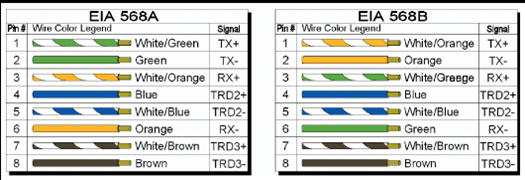

  • In Cross cable one end crimped as EIA/TIA-568B and other side with following format
Cross Cable Cross Cable
Cross Cable

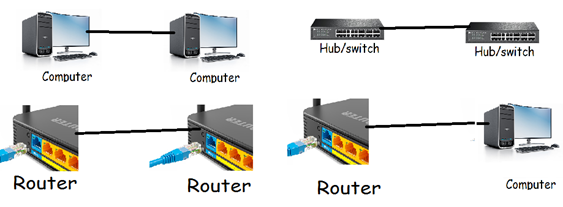

  • PC ……………………………PC
  • Hub ………………………….Hub
  • Switch ………………………Switch
  • Router………………………Router
  • PC/LAPTOP………………Router
Cross Cable
