Network Topologies

Bus Topology :

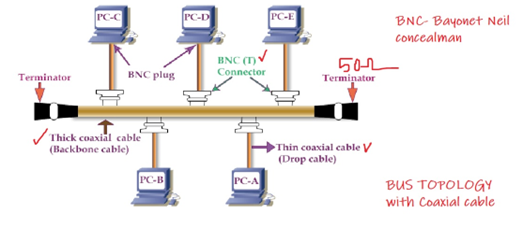

Bus Topology
Bus Topology
  • In this design all devices are connected to a single central cable (backbone).
  • It is Simple but failure-prone (single point of failure).
  • It is created by using Coaxial Thick Cable for backbone and Coaxial Thin Cable for the PCs
  • Devices are arranged in a straight line.
  • All devices are going to communicate over single cable media.
  • If the main cable fails, the entire network stops working.
  • Useful with only legacy systems.
